1FW6 Встраиваемые моментные двигатели
-
B15-…., ДИАМ. 184 ММ, ДЛИНА 209 ММ, ПРИ ИСПОЛЬЗОВАНИИ ВСТРАИВАЕМЫХ ТОРОИДАЛЬНЫХ ДВИГАТЕЛЕЙ В ВИЛОЧНЫЕ ГОЛОВКИ ИЛИ РОБОТОВ, МОЖЕТ ТРЕБОВАТЬСЯ ЛИЦЕНЗИЯ ДЛЯ АМЕРИКАНСКОГО ПАТЕНТА US5584621 И СООТВЕТСТВУЮЩИХ ГЛОБАЛЬНЫХ ПАТЕНТОВ
-
SIMOTICS T rotor for motor 1FW6154-8..10-….; diameter 230 mm; Length 140 mm;
-
SIMOTICS T rotor for motor 1FW6154-8..15-….; diameter 230 mm; Length 190 mm;
-
SIMOTICS T rotor segment for segment motor; component 3-phase synchronous motor; air gap diameter 2567 mm; active length 150 mm
-
SIMOTICS T rotor segment for segment motor; component 3-phase synchronous motor; linear segment 670mm; active length 150 mm;
-
SIMOTICS T stator components 3-phase synchronous motor; external cooling jacket; axial cable outlet 5 m; diameter 385 mm; length 160 mm; max. torque 1600 Nm; max. speed 1800 rpm; max. current 215 A rms with temperature sensor PTC130 and Pt1000;
-

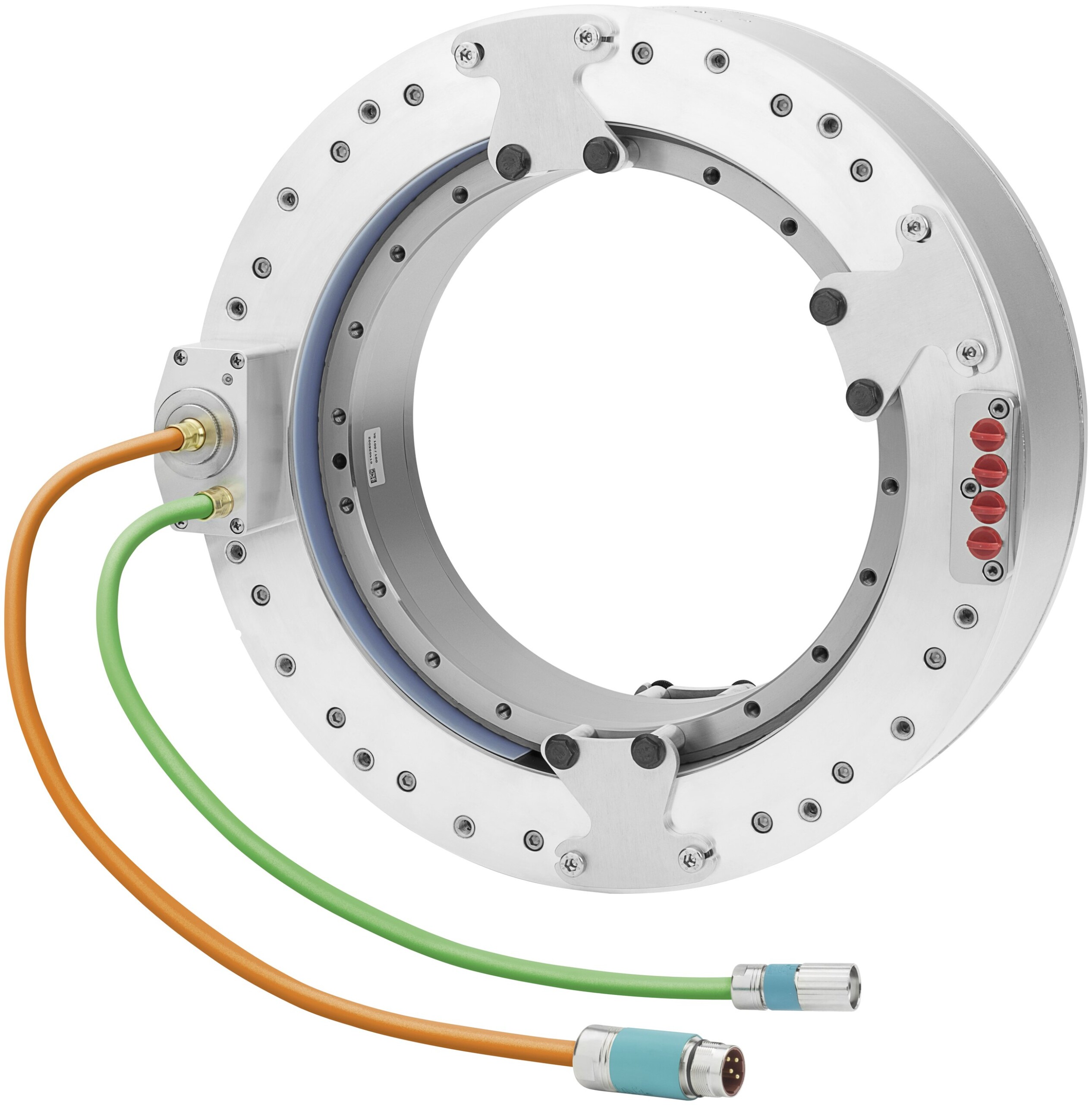

SIMOTICS T Stator External cooling jacket; Axial cable outlet; Power cable 0.5 m With connector Sz. 1; Signal cable 2 m with M17 connector; Diam. 230 mm; Length 190 mm; Max. torque 537 Nm; Max. speed 150 rpm; Max. current 26 A eff;
-
SIMOTICS T stator for torque motor external rotor 410×075; component 3-phase synchronous motor; inner cooling jacket with water cooling; axial cable outlet 0.5 m bare ends; diameter 436 mm; length 140 mm; maximum torque 2100 Nm; maximum speed 211 rpm (without VPM) maximum current 56.3 A rms; 2 temperature sensors Pt1000 and 2 units PTC130;
